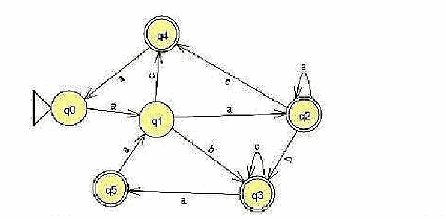

Consider the following DFA

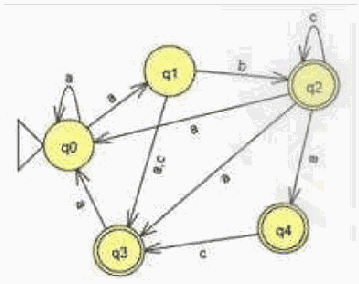

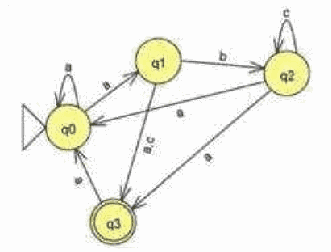

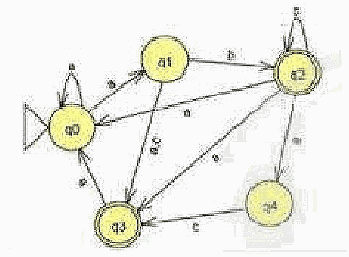

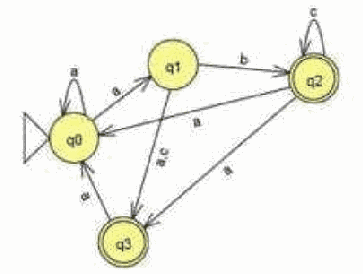

Which of the following NFA is valid for the given DFA ?
Pick an option to check yourself, or open the answer below.
Show answer & explanation
Correct answer: D.
Explanation
The figures in the source paper are too low-resolution to trace every transition reliably. The answer given is the official/PW key; the valid NFA must accept exactly the same strings as the DFA, so check each option by tracing the same input strings through both machines.
