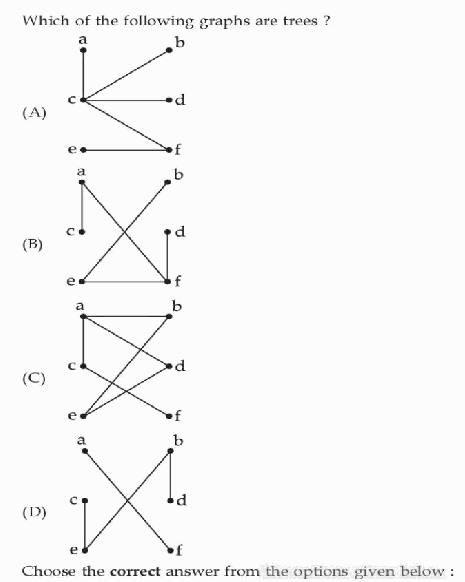

Which of the following graphs are trees? (see figure)
Pick an option to check yourself, or open the answer below.
Show answer & explanation
Correct answer: A. (A) and (B) only
Explanation
A tree on 6 vertices is connected with exactly 5 edges and no cycle. Graphs (A) and (B) each have 5 edges and connect all six vertices. (C) contains a cycle, and (D) has only 4 edges so it is disconnected.
