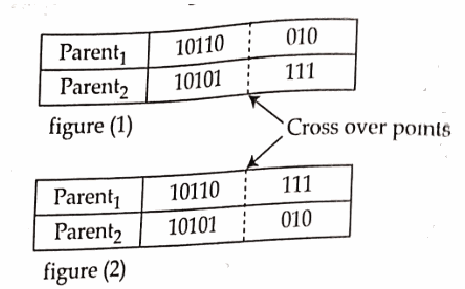

For the following Parents in figure (1) and (2) :

Which is correct?

1. Afigure (2) is the two point crossover of figure (1)
2. Bfigure (2) is one point crossover of figure (1)
3. Cfigure (2) is N point crossover of figure (1)
4. Dfigure (2) is uniform crossover of figure (1)

Pick an option to check yourself, or open the answer below.

Show answer & explanation

Correct answer: B. figure (2) is one point crossover of figure (1)

Explanation

In figure (1) both parents are cut at one point (after the fifth bit) and the tails 010 and 111 are swapped to give figure (2). A single cut point means one-point crossover.
