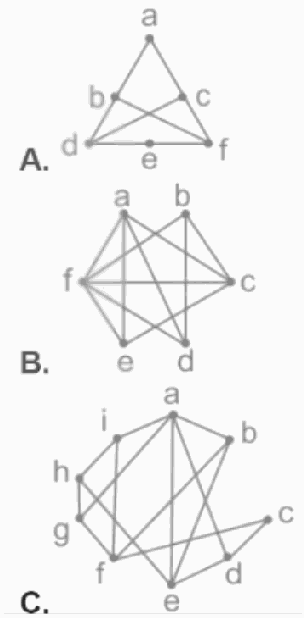

Which of the following Graphs is(are) planar?
Pick an option to check yourself, or open the answer below.
Show answer & explanation
Correct answer: C. A only
Explanation
Graph A can be drawn without crossings (its edges can be rerouted around the outside). Graphs B and C contain K₅ or K₃,₃ subdivisions, so they are not planar.
