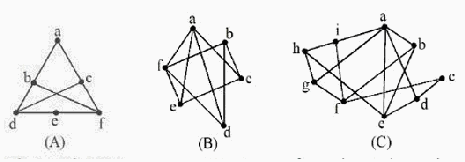

Which of the following Graph is/are planer?
Choose the most appropriate answer from the options given below:
Pick an option to check yourself, or open the answer below.
Show answer & explanation
Correct answer: D. A and B only
Explanation
A planar graph can be drawn without edge crossings. Graph A is already drawn without crossings. The official key also takes B as planar (it can be redrawn without crossings) and C as non-planar; check by redrawing or by finding a K₅ or K₃,₃ subdivision.
